For
over 75 Years
Anest
Iwata has
been the
Pioneer in Spray Technology
|
 • High
Performance
• Low Air Consumption
• Superior
Atomization |
|
Anest
Iwata is committed to Quality, Innovation
and Unparalleled Service
|
All LPH
Series Spray Guns operate
with "LV Technology"
Iwata's
Patented "LV Technology" Pre-Atomizes
the Fluid enabling Fine Atomization and the Superior Tulip Spray
Pattern provides Less Overspray!
|
Within
the 3 Types of the LPH400 HVLP Spray Gun Models you'll
be able to find
the set-up that suits your needs for Productivity,
Speed and Metallic Control.
|

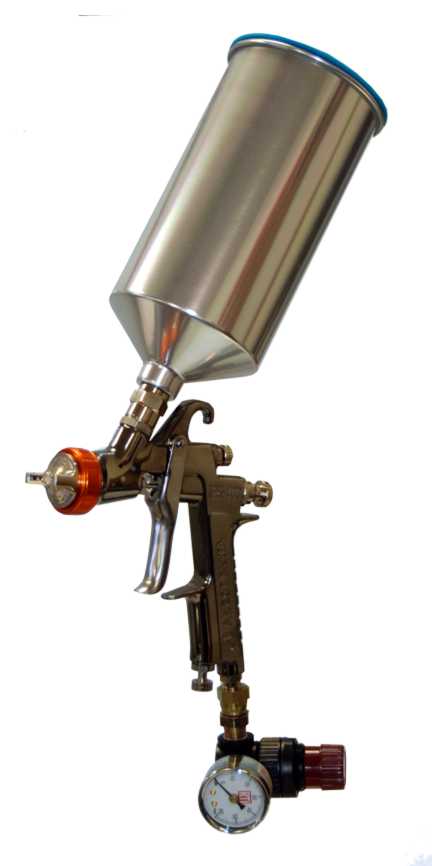

| Iwata
LPH400-LVX eXtreme Basecoat HVLP Spray Guns |
Purchase
the Set-Up that's Best Suits your Needs!
(Click Part Number in
Chart Below to Purchase) |
|
Any
Iwata LPH400-LV or LVB HVLP
Spray Gun with a 1.3, 1.4 or 1.5mm nozzle can
be converted to the LVX Set-Up
by switching to the Orange eXtreme Basecoat
Air Cap.
|
|
|
• High
Performance
• Low Air Consumption
• Superior
Atomization |
|
Iwata's
Patented "LV Technology" Pre-Atomizes
the Fluid enabling Fine Atomization and the Superior
Tulip Spray Pattern provides Less Overspray!
|
Teaming up with Iwata's LPH400 LVB the LPH400
LVX eXtreme basecoat technology was
developed for use with 90-95% of basecoat colors and
engineered to provide increased productivity in application for
solvent or waterborne basecoats. While the LPH400 LVB remains the
set-up for the most difficult or complex colors the LPH400
LVX handles all the middle range colors where productivity and
speed is a must.
Extensive field-testing and painter evaluation reports prove that the
LPH400 LVX is much faster than the competition and
has an ultra smooth application with no technique change. Inlet
pressures, spray distance and overlap are the same for the LPH400
LVX as a normal LPH400 LV.
Hybrid
metallic, regular metallic, xyrillic and regular pearls need more
than a one gun set-up to achieve the best color match and performance. Therefore, the LPH400
LVX eXtreme basecoat gun performs best with 90-95% of these basecoat
colors and for the other 5-10%, the LPH400 LVB
is the best solution.
The LPH400 LVX is also eXtremely
proficient with waterborne coatings and gives
an added advantage for waterborne basecoat application in hot
dry climates |
|
LPH400
LVX eXtreme Basecoat Spray Gun Set-Ups Chart
|
| Model |
Nozzle
Size (mm) |
PSI |
CFM |
Pattern
Width (inch) |
Air
Cap Model |
Gun
Only |
PCG6M
(600ml) #6000 |
PCG7M
(700ml) #6033B |
PCG10M
(1000ml) #6034B |
M & S
(600ml) #6040 |
Usage |
| LPH400-134LVX
• |
1.3 |
16.0 |
9.8 |
11.8 |
LPH
400
-LVX |
5660 |
5661 |
5662 |
5663 |
5664 |
Basecoat
Fine
Metallics
and Pearls |
| LPH400-144LVX
• |
1.4 |
12.2 |
5670 |
5671 |
5672 |
5673 |
5674 |
| LPH400-154LVX
• |
1.5 |
13.0 |
5680 |
5681 |
5682 |
5683 |
5684 |
RTI
MR1
Micrometer
Regulator
with Gauge |
PCG6PM 600ML
Plastic Gravity Cup
Item #(6000) |
PCG7CM
700ML
Aluminum Cup
Item #(6033c) |
PCG10CM 1000ML
Aluminum Cup
Item #(6034c) |
M & S
Mix & Spray System
Disposable / Re-usable Gravity Cup System (600ml) |
0-60 PSI |
600ML |
700ML |
1000ML |
 |
| Iwata
LPH400-LVB Super Basecoat
HVLP Spray Guns |
Purchase
the Set-Up that's Best Suits your Needs!
(Click Part Number in Chart
Below to Purchase) |
|
Any
Iwata LPH400-LV or LVX HVLP
Spray Gun with a 1.3, 1.4 or 1.5mm nozzle can
be converted to the LVB Set-Up
by switching to the Purple
Super Basecoat Air Cap.
|
|
| |
• High
Performance
• Low Air Consumption
• Superior
Atomization |
|
Iwata's
Patented "LV Technology" Pre-Atomizes
the Fluid enabling Fine Atomization and the Superior
Tulip Spray Pattern provides Less Overspray!
|
The LPH400-LVB Super Basecoat HVLP
Spray Gun is designed for "METALLIC
CONTROL" on refinish paints that contain
fine metallic and pearls that standard set-ups face difficulties
with, such as:
• mottling • blotching • streaking • floating • etc.
Due to the specific characteristics of these paints the operation
and set-up for the LPH400LVB is unique.
• Inlet
air pressure 10psi or lower, full trigger stroke
• 10
to 12 inch full spray pattern at 4 inches |
|
LPH400
LVB Super Basecoat Spray Gun Set-Ups Chart
|
| Model |
Nozzle
Size (mm) |
PSI |
CFM |
Pattern
Width (inch) |
Air
Cap Model |
Gun
Only |
PCG6M
(600ml) #6000 |
PCG7M
(700ml) #6033C |
PCG10M
(1000ml) #6034C |
M & S
(600ml) #6040 |
Usage |
LPH400-
134LVB |
1.3 |
14.0 |
8.3 |
12.6 |
LPH
400
-LVB |
5700 |
5701 |
5702 |
5703 |
5704 |
Basecoat
Fine
Metallics
and Pearls |
LPH400-
144LVB |
1.4 |
12.8 |
5705 |
5706 |
5707 |
5708 |
5709 |
LPH400-
154LVB |
1.5 |
13.2 |
5710 |
5711 |
5712 |
5713 |
5714 |
RTI
MR1
Micrometer
Regulator
with Gauge |
PCG6PM 600ML
Plastic Gravity Cup
Item #(6000) |
PCG7CM
700ML
Aluminum Cup
Item #(6033C) |
PCG10CM 1000ML
Aluminum Cup
Item #(6034C) |
M & S
Mix & Spray System
Disposable / Re-usable Gravity Cup System (600ml) |
0-60 PSI |
600ML |
700ML |
1000ML |
|
| Iwata
LPH400-LV HVLP Spray Guns |
Purchase
the Set-Up that's Best Suits your Needs!
(Click
Part Number in Chart Below to Purchase) |
Any
Iwata LPH400-LVB or LVX HVLP
Spray Gun with
a 1.3, 1.4 or 1.5mm nozzle
can be converted to the LV
Set-Up by switching to the LV4
Air Cap.
|
|
| |
• High
Performance
• Low Air Consumption
• Superior
Atomization |
|
Iwata's
Patented "LV Technology" Pre-Atomizes
the Fluid enabling Fine Atomization and the Superior
Tulip Spray Pattern provides Less Overspray!
|
The Anest Iwata "Century
Series" LPH400-LV
HVLP Spray Guns have
set-ups suited for Basecoats and Clearcoats, Waterbornes and other
Light to High Viscosity Coatings. Their "LV Technology" allows
for the best coating performance and the best “real
world” transfer efficiency.
The Gun has a Tulip Shaped Fan Pattern that:
•
• Greatly improves transfer efficiency and wetness of
• the pattern all the way
through.
• Overspray
rolls with the fan to the surface not to
• the side or away. This means
a softer edge.
•
• Coatings will blend in together easier
• Softer and even atomization
• Lower atomizing pressure reduces overspray and
• bounce-back |
|
LPH400
LV Spray Gun Set-Ups Chart
|
| Model |
Nozzle
Size (mm) |
PSI |
CFM |
Pattern
Width (inch) |
Air
Cap Model |
Gun
Only |
PCG6M
(600ml) #6000 |
PCG7M
(700ml) #6033C |
PCG10M
(1000ml) #6034C |
M & S
(600ml) #6040 |
Usage
Applications |
LPH400-
124LV |
1.2 |
16.0 |
9.5 |
10.2 |
LPH
400
-LV4 |
5540 |
5541 |
5542 |
5543 |
5549 |
Light
Industry, Hobby, Spot Repair, Fine Metallic |
LPH400-
134LV |
1.3 |
11 |
5640 |
5641 |
5642 |
5643 |
5659 |
Woodwork,
Automotive, Basecoat, Topcoat |
LPH400-
144LV |
1.4 |
11.4 |
5550 |
5551 |
5552 |
5553 |
5559 |
Woodwork,
Automotive, Basecoat, Topcoat |
LPH400-
154LV |
1.5 |
11.6 |
5535 |
5536 |
5537 |
5538 |
5539 |
Single
Stage, Basecoat, Medium to High Viscosity |
LPH400-
164LV |
1.6 |
11.8 |
5560 |
5561 |
5562 |
5563 |
5569 |
Sealers,
Primer, Clear, Medium to High Viscosity |
LPH400-
184LV |
1.8 |
12.6 |
5570 |
5571 |
5572 |
5573 |
5579 |
Primer,
High Viscosity |
RTI
MR1
Micrometer
Regulator
with Gauge |
PCG6PM 600ML
Plastic Gravity Cup
Item #(6000) |
PCG7CM
700ML
Aluminum Cup
Item #(6033C) |
PCG10CM 1000ML
Aluminum Cup
Item #(6034C) |
M & S
Mix & Spray System
Disposable / Re-usable Gravity Cup System (600ml) |
0-60 PSI |
600ML |
700ML |
1000ML |
|
|
|

   |
|
|
 |
 |
 |
|
