 This spray booth is compact and easy to assemble and disassemble. It also features galvanized metal panels for easy cleaning and durability. The working area is 22" wide X 20" deep X 16" high. The vent supplies 240-280 CFM. The booth is supplied with one fiberglass and one carbon filter. When spraying materials with strong vapors or harmful chemicals exhaust should be vented to the outside. A hookup for 4" dryer duct is supplied with booth.
PAS HSSB-22-16 - HSSB-22-16 22-inch Spray Booth
NEW! Paasche HSSB-30-16 Spray Booth
Same as HSSB-22-16 above, but the working area is 30" wide X 20" deep X 16" high.
PAS HSSB-30-16 - HSSB-30-16 30-inch Spray Booth
Now Available! Replacement Filters for Paasche HSSB Spray Booths
PAS AG-8" - Polyester Filter, 8"
PAS CHAR-8" - Charcoal Filter, 8"
ArtoGraph Professional Air-Brush Spray Booths
1520 Standard Compact Air-Brush Spray Booth
 An efficient booth for small spaces and tight budgets, the 1520 accommodates flat or 3-D objects. The 15" x 20" (38 x 51 cm) work surface features a three-stage filter system: a replaceable pre-filter sheet, which captures the bulk of the sprayed materials, thick polyester mid-filter and polyester/carbon filter. Features a built-in exhaust adapter for venting out-of-doors or to another space.
ART 225-315 - 1520 Standard Compact Air-Brush Spray Booth
ART 225-316 - Pre-Filter, 20 Sheet Pack
ART 225-317 - Filter Pack (4 each mid-filter and poly-carb pads)
ART 225-356 - Pre-Filter Roll (20" by 50 yards)
Product Highlights
Features a 15" x 20" (38 x 51 cm) work surface accommodates flat or 3-D objects up to 13" x 18".
Replaceable three-stage filter design
Replaceable spray guard hood
Combines low cost with high efficiency
Airflow: 185 CFM
Weight: 17 lbs.
Width: 20"
Depth: 15"
Height: 18"
Electrical: 115 V, 15-watts
5-year warranty
Made in the U.S.A.
Features Three-Stage Filter Design:
1st Stage: 100% polyester pre-filter media that traps the bulk of the initial spray and provides a continuous clean work surface. Spray Systems includes 5 pre-cut sheets. Replacement Pre-Filters available in a pre-cut 20 sheet pack or unique cost-saving 50-yard roll.
2nd Stage: Under the pre-filter is a 1" thick non-woven polyester air-laid material with a blue PVC binder on the exit side. This material, unlike fiberglass, is non-toxic, will not migrate on the air exit side and offers excellent filtration. Spray System includes 1 each of this filter.
3rd Stage: A carbon-impregnated polyester (poly-carb) offering odor and further particle-trapping efficiency. Spray System includes 1 each of this filter.
Standard Booth Accessories and 1520 Replacement Filters
Pre-Filter - thin replaceable 100% polyester pre-filter traps the bulk of the initial spray and provides a continuously clean work surface. Comes in conveniently pre-cut sheets. Should be replaced approximately every 90 surface sprays.
ART 225-316 - Pre-Filter, 20 Sheet Pack
Filter Pack - 4 each mid-filter & poly-carb filter pads. The mid-filter is a non-woven air-laid polyester substrate with a green PVC binder on the exit side. Poly-carb filter is a carbon-impregnated polyester offering high odor and further particle-trapping efficiency. Note: Both filters should be replaced at the same time, approximately every three months with regular use or when replacing the Pre-Filter Roll.
ART 225-317 - Filter Pack (4 each mid-filter and poly-carb pads)
 Pre-Filter Roll Tray - mounted to the back of the unit to conveniently hold the Pre-Filter Roll (#225-356). Pre-Filter not included.
Pre-Filter Roll - unique roll mounted 100% polyester pre-filter that traps the bulk of the initial spray and provides a continuous clean work surface. To replace, simply pull down the soiled pre-filter and cut it off with a pair of scissors. 20" x 50 yards, 100% spun bonded continuous filament polyester. Provides approximately 90 surface sprays.
ART 225-356 - Pre-Filter Roll (20" by 50 yards)
1530 Hobby Model Air-Brush Spray Booth
 Unique spray system ideal for the model builder or designer. The 15" x 30" (38 x 76 cm) spray booth (accommodates objects up to 28" long and 13" wide) is ideal for reducing the over spray and odors from aerosol or airbrush painting. The 1530 offers a three-stage filter system: a replaceable pre-filter sheet, which captures the bulk of the sprayed materials, thick polyester mid-filter and a polyester/carbon filter. The built in exhaust adapter can be outfitted for venting out-of-doors. The 1530 features a metal hood with a clear window for excellent illumination and a perforated front edge for hanging small parts.
ART 225-345 - 1530 Hobby Model Air-Brush Spray Booth
ART 225-346 - Pre-Filter, 20 Sheet Pack
ART 225-347 - Filter Pack (4 each mid-filter and poly-carb pads)
ART 225-348 - Pre-Filter Roll Tray
ART 225-349 - Pre-Filter Roll (40" by 50 yards)
Product Highlights
15" x 30" (38 x 76 cm) work surface
Conveniently angled
Metal spray guard hood with clear acrylic window allows for more ambient light
Built in exhaust port for external venting
High-efficiency, replaceable Three-stage filter design
Airflow: 370 CFM (Free or Unrestricted Air)
Width: 30"
Depth: 15 ½ "
Height: 21"
Weight: 22 lbs.
Electrical: 115V, 15-watts
5-year warranty
Made in the U.S.A.
Features Three-Stage Filter Design:
1st Stage: 100% polyester pre-filter media that traps the bulk of the initial spray and provides a continuous clean work surface. Spray Systems includes 5 pre-cut sheets. Replacement Pre-Filters available in a pre-cut 20 sheet pack or unique cost-saving 50-yard roll.
2nd Stage: Under the pre-filter is a 1" thick non-woven polyester air-laid material with a blue PVC tackifier binder on the exit side. This material, unlike fiberglass, is non-toxic, will not migrate on the air exit side and offers excellent filtration for particles 5 microns or larger. Spray System includes 1 each of this non-woven polyester material.
3rd Stage: A carbon-impregnated polyester (poly-carb) offering high odor and further particle-trapping efficiency. Spray System includes 1 each of this filter.
Hobby Booth Accessories and 1530 Booth Filters
Pre-Filter - thin replaceable 100% polyester pre-filter traps the bulk of the initial spray and provides a continuously clean work surface. Comes in conveniently pre-cut sheets. Should be replaced approximately every 90 surface sprays.
ART 225-346 - Pre-Filter (20 sheet pack)
Filter Pack - 4 each mid-filter & poly-carb filter pads. The mid-filter is a non-woven air-laid polyester substrate with a green PVC binder on the exit side. Poly-carb filter is a carbon-impregnated polyester offering high odor and further particle-trapping efficiency. Note: Both filters should be replaced at the same time, approximately every three months with regular use or when replacing the Pre-Filter Roll.
ART 225-347 - Filter Pack (4 each mid-filter and poly-carb pads)
Pre-Filter Roll Tray - mounted to the back of the unit to conveniently hold the Pre-Filter Roll (#225-349). Pre-Filter not included.
ART 225-348 - Pre-Filter Roll Tray
Pre-Filter Roll - unique roll mounted 100% polyester pre-filter that traps the bulk of the initial spray and provides a continuous clean work surface. To replace, simply pull down the soiled pre-filter through the attached cutting bar, and tear off like a paper towel dispenser. 30" x 50 yards, 100% spun bonded continuous filament polyester. Provides approximately 90 surface sprays.
ART 225-349 - Pre-Filter Roll (30" by 50 yards)

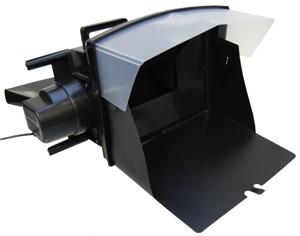

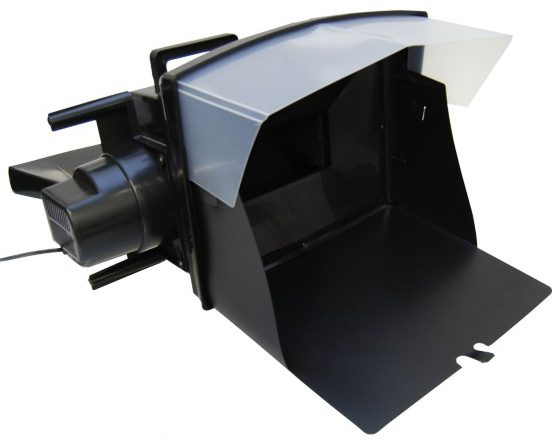

Testors Spray Booth
Description:
Durable metal spray booth with exhaust fan and external exhaust adapter. Receptacle for light (light not included). The new Spray Booth is specifically designed to reduce the mess and hazards often associated with spraying paint in a confined area. The powered fan system effectively collects overspray and is configured to easily vent vapors outside the work area. A 3-stage filter system includes an easy-to-replace prefilter. A polyester mid-filter and poly-carb filter complete the filtering system. The spray hood has a clear window area with mounting brackets for a light (light not included). Any modeler using aerosol spray paints or an airbrush should use the Spray Booth in his or her work area.
Features:
15" x 20" (38 x 51 cm) work surface accommodates flat or 3-D objects up to 13" x 18"
Replaceable three-stage filter design
Replaceable spray guard hood
Combines low cost with high efficiency
Airflow: 185 CFM
Weight: 17 lbs.
Width: 20", Depth: 15", Height: 18"
Electrical: 115 V, 15-watt
Paasche Bench Type Filter Booth (BBF)
 BBF-Economy Filter Booth offers the same rugged construction features as the BB- Baffle Type, but offers the convenience of (Standard) Fiber Glass Filters. BBF-Bench Booths in single or multiple sections are ideal where space is at a premium. Used extensively by manufacturers of jewelry, novelties, toys and small objects. BBF- Bench Booths are constructed of 20 gauge galvanized sheet steel.
Standard items included with booth:
Top Exhaust
115/230, 1 phase explosion proof motor
2 sets of filter
Belt Guard & Draft Gauge
PAS BBF-2 - Bench Type Filter Booth with Top Exhaust, 2 feet wide
PAS BBF-3 - Bench Type Filter Booth with Top Exhaust, 3 feet wide
PAS BBF-4 - Bench Type Filter Booth with Top Exhaust, 4 feet wide
PAS AG16 - Filter for BBF Spray Booth, box of 50
Shipment by Truck Freight Only
Paasche EBF- Filter Booths Single Exhaust Bench Type
 EBF- Single Exhaust Filter Type Bench Booths with AG- (Standard) Fiber Glass Filters, provide maximum air flow with minimal face loading and pass-through of overspray. All Booths are supplied with an extra set of Fiber Glass Filters and visible draft gauge. EBF- Booths will accommodate Top or Back exhaust.
Standard items included with booth: Top Exhaust
115/230, 1 phase explosion proof motor
2 sets of filter
Belt Guard & Draft Gauge
PAS EBF-3 - Filter Booths with Top Exhaust, 3 feet wide
PAS EBF-4 - Filter Booths with Top Exhaust, 4 feet wide
PAS EBF-5 - Filter Booths with Top Exhaust, 5 feet wide
PAS EBF-6 - Filter Booths with Top Exhaust, 6 feet wide
PAS EBF-8 - Filter Booths with Top Exhaust, 8 feet wide
PAS EBF-10 - Filter Booths with Top Exhaust, 10 feet wide
PAS EBF-12 - Filter Booths with Top Exhaust, 12 feet wide
PAS EBF-14 - Filter Booths with Top Exhaust, 14 feet wide
Shipment by Truck Freight Only
Paasche FABSF- Filter Spray Booth Shelf Type with Filter Cells
 FABSF- Filter Shelf Booths are equipped with replaceable filters which provide maximum air flow with minimal face loading and pass-through of overspray. Filter cell sections include AG-Fiber Glass Filters (Standard) which can be quickly replaced when necessary. An extra set of AG-Fiber Glass Filters and visible draft gauge are supplied with each Booth. The FABSF-Shelf Type offers the same construction features as FABF-Floor Type Booth.
FABSF-Shelf Type Filter Booths are 7-feet high and are available in many standard widths.
Top Exhaust
230/460, 3 phase totally enclosed motor
2 sets of filter
Belt Guard & Draft Gauge
PAS FABSF-3 - Shelf Type Filter Booths with Filter Cells, 3 feet wide
PAS FABSF-4 - Shelf Type Filter Booths with Filter Cells, 4 feet wide
PAS FABSF-5 - Shelf Type Filter Booths with Filter Cells, 5 feet wide
PAS FABSF-6 - Shelf Type Filter Booths with Filter Cells, 6 feet wide
PAS FABSF-8 - Shelf Type Filter Booths with Filter Cells, 8 feet wide
PAS FABSF-10 - Shelf Type Filter Booths with Filter Cells, 10 feet wide
Shipment by Truck Freight Only
Paasche FABF- Filter Spray Booths Floor Type with Filter Cells
 FABF- Filter Floor Booth features 18 gauge galvanized steel panels with flanged edges. Filter cell sections include AG-Fiber Glass Filters (Standard) which can be quickly replaced when necessary. These filter cells provide maximum air flow with minimal face loading and pass-through of overspray. An extra set of AG-Fiber Glass Filters and visible draft gauge are supplied with each Booth.
FABF are 7-feet high and are available in many standard widths.
Top Exhaust
230/460, 3 phase totally enclosed motor
2 sets of filter
Belt Guard & Draft Gauge
PAS FABF-3 - Floor Type Filter Booths with Filter Cells, 3 feet wide
PAS FABF-4 - Floor Type Filter Booths with Filter Cells, 4 feet wide
PAS FABF-5 - Floor Type Filter Booths with Filter Cells, 5 feet wide
PAS FABF-6 - Floor Type Filter Booths with Filter Cells, 6 feet wide
PAS FABF-8 - Floor Type Filter Booths with Filter Cells, 8 feet wide
PAS FABF-10 - Floor Type Filter Booths with Filter Cells, 10 feet wide
PAS FABF-12 - Floor Type Filter Booths with Filter Cells, 12 feet wide
PAS FABF-14 - Floor Type Filter Booths with Filter Cells, 14 feet wide
PAS FABF-16 - Floor Type Filter Booths with Filter Cells, 16 feet wide
PAS FABF-18 - Floor Type Filter Booths with Filter Cells, 18 feet wide
PAS FABF-20 - Floor Type Filter Booths with Filter Cells, 20 feet wide
Shipment by Truck Freight Only
|
